Radial Arterial Line Placement


  • Need for frequent BP monitoring in unstable patients
  • Need for frequent blood gas measurements in patients on a ventilator
  • If venous access is limited and multiple lab draws are needed


  • Severe coagulopathy; platelets<50k; INR>1.5-1.6 (relative contraindication)
  • Evidence of impaired perfusion with significantly decreased pulse
  • Infection/inflammation over site
  • Presence of arterial graft at site to be used


  • Thrombosis (5-25% on Doppler, but hand ischemia is rare)
  • Infection (bacteremia rare)


  • The radial artery is most often used; advantages include ease of placement, relative accuracy, presence of collateral flow. Note that if a short catheter is used in the radial position, BP may be underestimated on high dose vasopressors in septic patients. Pressor effect on the longer catheter normally used is unknown.
  • Brachial artery catheters are another option, and should be located just above the elbow crease. The technique is the same as for radial placement.
  • Dorsalis pedis artery catheters may also be placed as an alternative; a short catheter may need to be used in this situation.
  • The femoral artery is an option that is often employed when radial catheters cannot be placed. It is a relatively easy artery to cannulate, and may be more accurate in sepsis when high dose pressors are used. Disadvantages include an increased risk of infection and it may be problematic when a patient is awake and moving the legs.


  1. Ensure there is an adequate pulse in the radial artery prior to attempting the procedure.
  2. An Allen's test to assess ulnar patency is not generally recommended due to lack of sensitivity or specificity especially in patients >65 years old
  3. Place a small towel roll under the dorsum of the wrist, and tape the hand to a fixed surface
  4. View anatomy

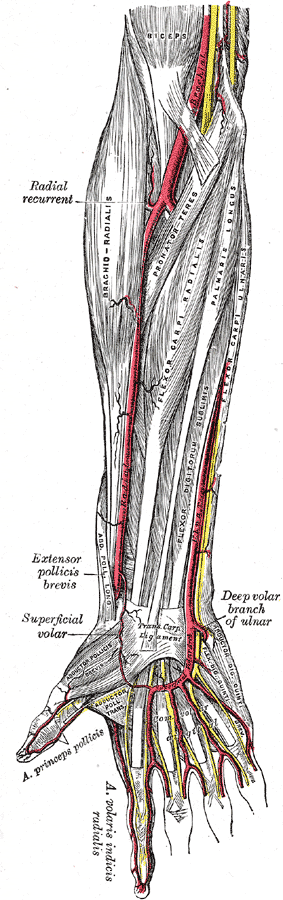

  5. Radial Artery Anatomy
  6. Prep an area over the radial artery about 4-5 cm proximal to the wrist, and cover with the drape provided.
  7. Anesthetizing the area over the artery with lidocaine helps in comfort and may reduce arterial spasm. Too large a wheal can obscure the artery, so keep it small. You can place a small amount of lidocaine on either side of the artery as well. Avoid placing directly over the wrist.
  8. While palpating the artery with your non-dominant hand, use the large finder needle to advance through the skin at a 30 degree angle.
  9. When the artery is entered, a pulsatile flow of blood will be seen.
  10. Once in the artery, advance the guide wire through the needle, and remove the needle, always making sure to be holding on to the guide wire If the guide wire will not thread, remove it and the needle, and try a different spot.
  11. Avoid using the short needle/catheter if possible; sometimes, however, the longer catheter won't work.
  12. Place the 12 cm catheter over the guide wire, and advance until the hub is up to the skin.
  13. Remove the guide wire, and connect the catheter to a stopcock for measuring. See if an arterial tracing is obtained.
  14. Suture the sides of the catheter to the skin to ensure it doesn't fall out.
  15. Femoral or brachial artery lines are done in the same manner.
